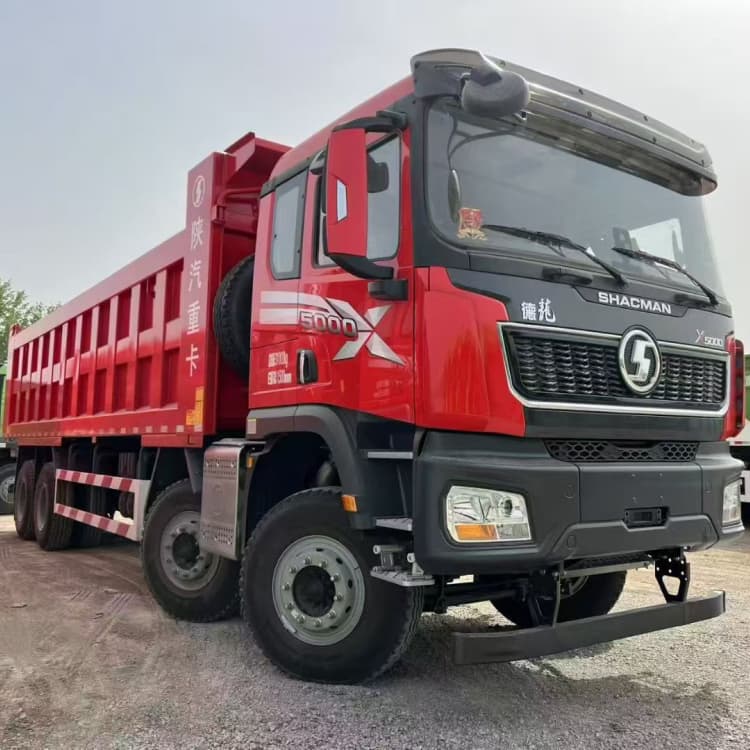

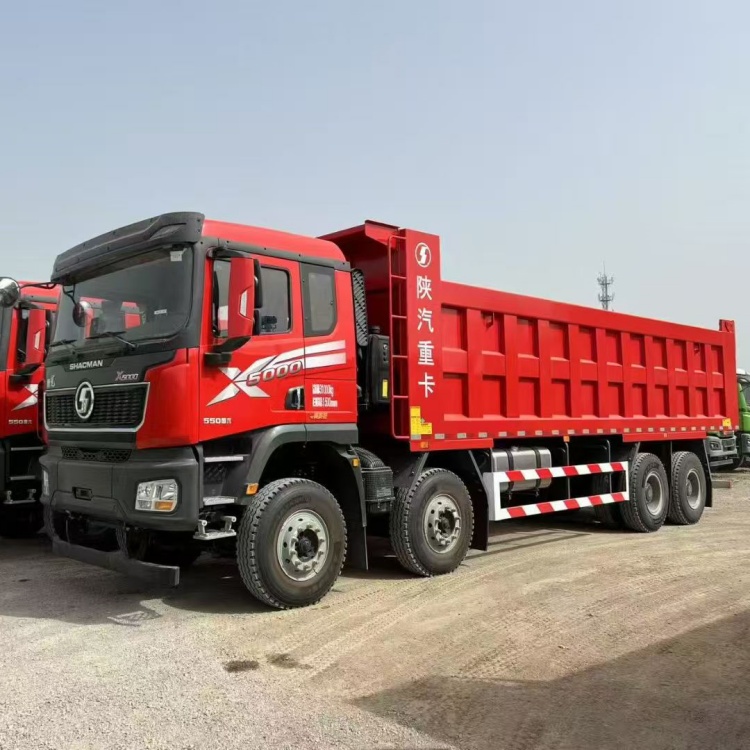

Reman SHACMAN X5000 Dump Truck 8×4

Reman SHAMAN X5000 Dump Truck Description

• Built on SHACMAN X5000 advanced heavy‑duty platform, this REMAN ROAD reman SHACMAN X5000 8×4 tipper is engineered for jobs requiring large single‑trip payload.
• Multi‑axle dump trucks endure complex alternating stress from heavy cargo, uneven ground and frequent lifting cycles, which gradually creates bin inner‑plate abrasion, multi‑axle offset and hidden frame fatigue that cannot be spotted by visual inspection.

• During remanufacturing, non‑destructive testing is performed on frame and cargo bin welds; axle‑group alignment is recalibrated to balance load distribution; worn bin sections receive overlay‑weld reinforcement. Powertrain, transmission and full hydraulic lifting circuit are inspected, repaired or replaced according to factory wear standards.
• Every reman SHACMAN truck X5000 completes repeated heavy‑load dumping validation. It fits quarry mining, large land‑reclamation works and aggregate transportation for major road‑construction programs.

Full Technical Parameter Table

• Name: Reman SHACMAN X5000 Dump Truck 8×4
• Overall Dimension (mm): 8480×2550×3390, main frame metal‑fatigue eliminated, high‑stress welding seams reinforced
• Drive Type: 8×4 dump truck chassis; ultrasonic crack detection for frame bin‑mount stress zones

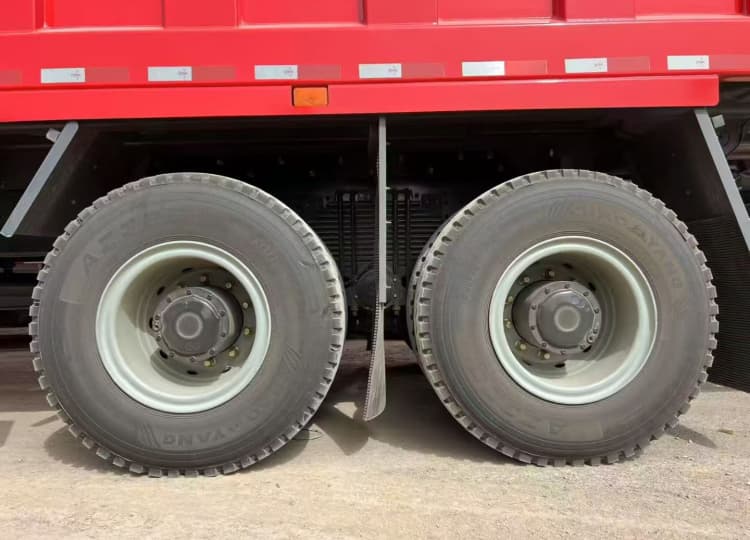

• Tyre Spec: 12 pcs off‑road mixed‑pattern radial tires; damaged tires replaced, wheel hub inspection completed
• Engine: Weichai diesel engine; component‑level reman, wear measurement, power‑torque recalibrated, fault codes cleared
• Axles: 2 steer axles +2 heavy‑duty rear drive axles; disassembly inspection, axle‑group alignment calibrated, differential‑lock verified
• Transmission: 12‑speed manual gearbox; gear clearance checked, defective synchronizer parts replaced, shifting tuned
• Suspension: Heavy‑duty leaf‑spring suspension; bushings and shock absorbers measured and replaced over wear limits

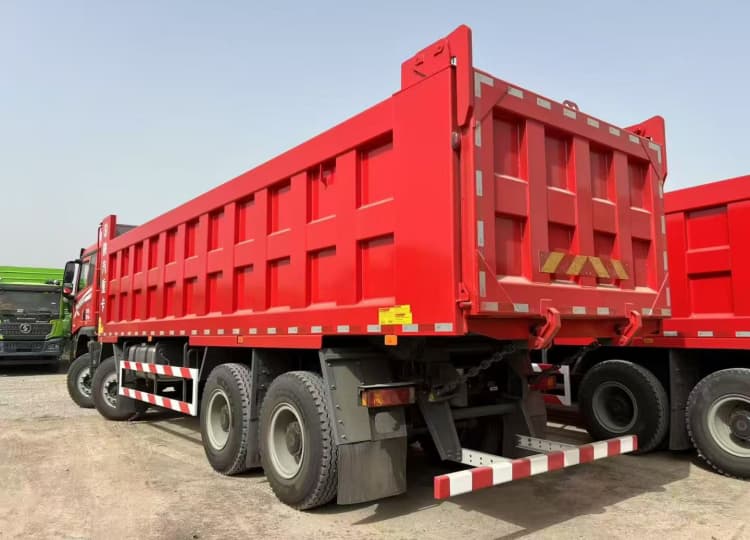

• Dump Cargo Bin: High‑strength steel tipper bin; abraded zones overlay‑welded, deformed panels straightened, weld seams flaw‑detected
• Hydraulic Lifting System: Front multi‑stage lifting cylinder; circuit fully flushed, seals & high‑pressure hoses renewed, lifting‑dumping cycle calibrated
• Air‑Brake System: Dual‑circuit air brake with ABS; full overhaul, air tightness test, loaded‑simulated braking validation

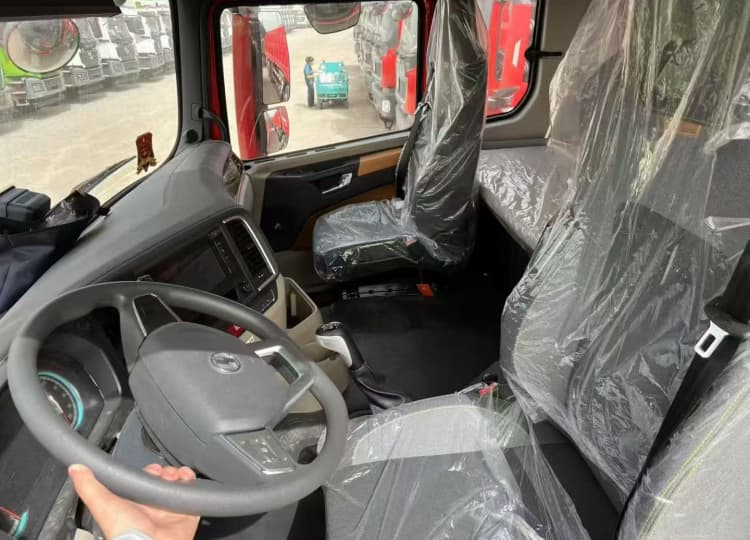

• Driver Cabin: SHACMAN X5000 modern ergonomic cab; mounting checked, wiring harness reorganized, sealing strips updated
• Remanufacturing Standard: Full‑vehicle disassembly, multi‑level component screening, multi‑scene durability test, complete overhaul documentation

Truck Remanufacturing Process

• Whole‑vehicle condition audit & technical benchmark setting
  Carry out real‑load road test, record power output, lifting efficiency and braking status. Complete non‑destructive inspection for frame and tipper‑box welding seams. Measure wear clearance of core moving parts, formulate repair benchmark referring to original factory wear‑limit specifications, and clarify replacement, repair and retention scope of each assembly.
• Full disassembly and multi‑level component classification
  Disassemble the whole vehicle down to single‑component level. Divide all spare‑parts into three categories: qualified reusable after deep cleaning; repairable via straightening, overlay‑welding or precision machining; must‑replace when exceeding wear threshold. Isolate severely fatigued structural parts and aging hydraulic components.
• Component repair, reassembly and cross‑assembly system matching debugging
  Implement restoration processing for repairable parts. Reassemble engine, gearbox and axles strictly following factory torque requirements. Reinforce tipper‑box high‑stress zones, assemble renewed hydraulic components. Focus on cross‑system matching: adjust powertrain output curve, lifting speed and suspension posture, eliminate performance inconsistency caused by mixing old and new components.
• Multi‑scene validation and reman‑data filing before delivery
  Conduct static hydraulic cycle test, no‑load road test and simulated heavy‑payload dumping test. Verify power response, braking stability, dumping smoothness and zero‑leakage of hydraulic circuit. Only reman Shacman truck for sale meeting all quantitative indicators enter final anti‑corrosion painting. Archive component‑processing data bound with vehicle VIN for delivery together with the truck.

Why Choose Reman SHACMAN X5000 Dump Truck?

• For engineering fleets and material‑transport enterprises, brand‑new SHACMAN X5000 dump trucks mean huge one‑time capital occupation, together with long production and delivery cycles, which brings pressure for projects with tight schedules and constrained cash flow.
• Second‑hand or merely refurbished tippers have low procurement costs, however, most of them lack standardized component screening. Subtle structural cracks, power attenuation and hydraulic aging may erupt at critical construction stages, triggering project delay and additional repair expense.
• REMAN ROAD reman SHACMAN truck X5000 fills this market gap. It implements quantitative restoration for frame, powertrain, axle group and hydraulic lifting system, and passes multi‑dimensional pre‑delivery verification.
• Customers can acquire high‑reliability construction equipment at much lower cost than new trucks. Meanwhile traceable reman inspection records support cross‑border project acceptance and internal fleet asset management, effectively balancing procurement expenditure, equipment reliability and delivery lead‑time.
