Reman SHACMAN F3000 400 8×4 Dump Truck

Reman SHACMAN Dumper Truck Description

• REMAN ROAD remanufactured SHACMAN dumper truck F3000 6×4 targets fleet operators working in under‑serviced regions, where complicated custom‑built equipment brings huge repair obstacles.
• Rather than over‑upgrading components, reman work preserves the original mature component architecture of F3000, while replacing worn‑out parts and rectifying frame distortion, bin wear and hydraulic drift accumulated from previous site operations.
• All engine, axle and hydraulic components follow factory tolerance benchmarks; lifting speed, brake response and suspension geometry are fully recalibrated.

• When breakdowns occur locally, standard widely‑available aftermarket components can support fast repairs, cutting waiting time for special‑order spare parts.
• Validated through cyclic loading‑dumping tests, this reman F3000 dump truck delivers steady output for quarry, road‑building and land‑reclamation projects in remote areas.

Full Technical Parameter Table

• Name: Reman SHACMAN 400 F3000 8×4 Dump Truck U Shape Cargo Box
• Overall Dimension (mm): 8480×2550×3390, main frame metal‑fatigue eliminated, high‑stress welding seams reinforced
• Drive Type: 6×4 dump truck chassis; ultrasonic crack detection for frame bin‑mount stress zones
• Tyre Spec: 10 units 12.00R20 heavy‑duty mine‑grade off‑road tyres, spare tyre equipped, wheel‑hub assemblies overhauled
• Engine: Weichai diesel engine; full component reman, wear measurement, power output recalibrated, fault codes cleared
• Axles: 1 steer axle +2 heavy‑duty rear drive axles; disassembly inspection, gear gap adjusted, differential‑lock function verified
• Transmission: 12‑speed manual gearbox; gear‑clearance measured, failed synchronizer parts replaced, shifting performance tuned
• Suspension: Heavy‑duty leaf‑spring suspension, spring fatigue screening, dual rear‑axle pre‑load calibrated
• Dump Cargo Bin: Steel tipper bin; worn sections overlay‑welded, deformed panels straightened, bin weld seams crack‑detected
• Hydraulic Lifting System: Front‑mounted lifting cylinder; circuit full flushing, seals & high‑pressure hoses renewed, lifting‑dumping cycle calibrated
• Air‑Brake System: Dual‑circuit air brake with ABS; full overhaul, air tightness test, loaded‑simulated braking validation

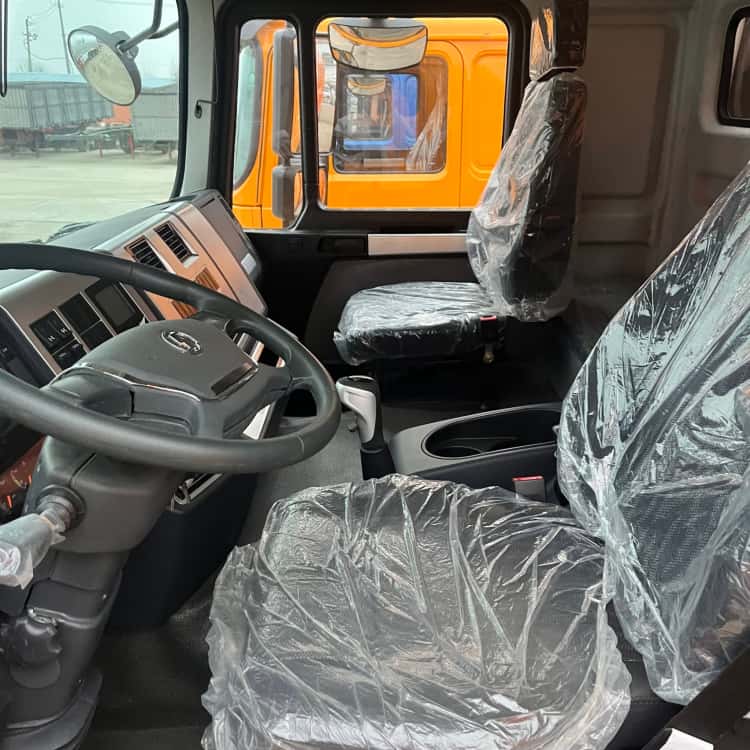

• Driver Cabin: SHACMAN F3000 engineering cab; mounting checked, wiring sorted, weather‑strip renewed
• Remanufacturing Standard: Full‑vehicle disassembly, multi‑level component screening, multi‑scene durability test, complete overhaul documentation

Truck Remanufacturing Process

• Pre‑remanufacturing technical evaluation & data recording
  Carry out complete vehicle road test and assembly performance audit. Record actual output, hydraulic lifting status and brake data. Run non‑destructive detection on frame and dump‑bin welding seams, measure wear value of axle, engine and suspension key parts, sort out repair scope according to factory wear‑limit criteria.
• Full disassembly and parts grading treatment
  Take the whole truck apart down to core component level. Classify all disassembled parts into three categories: qualified reusable after cleaning, repairable via machining/welding, and must‑replace for over‑limit wear. Severely worn bin components, aging hydraulic sealing sets and fatigued transmission parts are screened out directly.
• Component restoration, reassembly and system matching calibration
  Process repairable parts by overlay welding, straightening and precision machining. Reassemble engine, gearbox, axles following reassembly torque requirements. Reinforce dump‑bin vulnerable zones, assemble renewed hydraulic components, then conduct system‑wide matching calibration for powertrain, lifting circuit and suspension geometry.
• Multi‑dimension functional verification & file archiving
  Perform static hydraulic lifting cycle test, no‑load road test and simulated heavy‑payload dumping test. Check power output, braking performance, dumping stability and leakage status. Only units passing all measurement indicators enter final painting process. Generate VIN‑bound reman component‑inspection file for delivery.

Why Choose Reman SHACMAN Dumper Truck?

REMAN ROAD reman F3000 tipper truck fill the market gap between expensive brand‑new vehicles and high‑risk ordinary second‑hand trucks:

• Brand‑new SHACMAN F3000 tippers require large one‑time capital outlay and long delivery cycles, which is unfriendly for project fleets with limited budget or urgent deployment needs.
• Common second‑hand or merely refurbished units only fix obvious faults, leaving hidden structural wear inside frame, axles and hydraulic cylinders undetected, easily triggering sudden site breakdowns and project delays.
• REMAN ROAD remanufacturing adopts a component‑level restoration logic: key load‑bearing structures get crack detection, over‑limit wearing parts are replaced, the full hydraulic lifting circuit is rebuilt, and multi‑scene functional testing is enforced before delivery.
• Operators can obtain near‑factory‑level comprehensive performance at far lower procurement cost. Besides, complete VIN‑linked inspection records support fleet asset management and cross‑border project acceptance, effectively cutting overall equipment downtime and lowering long‑term operating risks.
