Heavy Reman SHACMAN F3000 6×4 Tipper Truck

Heavy Reman Dump Truck Description

• REMAN ROAD reman tipper truck SHACMAN inherits the platform’s well‑known durability for harsh job‑site environments.
• Under continuous impact from stone loading and repeated lifting cycles, original units tend to suffer bin wall wear, hydraulic cylinder internal leakage and frame stress concentration.

• Different from surface‑level touch‑up, REMAN ROAD truck reman work carries out component‑by‑component assessment: frame high‑stress positions receive ultrasonic crack inspection; worn bin liners are repaired or overlay‑welded; the whole hydraulic lifting circuit is flushed and renewed.
• Powertrain, axles and suspension are restored close to factory performance. Each REMAN ROAD heavy reman dump truck for sale completes full lifting‑cycle testing under simulated payload, suitable for quarry excavation, road construction and mine material transportation.

Full Technical Parameter Table

• Name: Reman SHACMAN F3000 Dump Truck 6×4
• Overall Dimension (mm): 8480×2550×3390, main frame metal‑fatigue eliminated, high‑stress welding seams reinforced
• Drive Type: 6×4 dump truck chassis; ultrasonic crack detection for frame bin‑mount stress zones
• Tyre Spec: 10 units 12.00R20 heavy‑duty mine‑grade off‑road tyres, spare tyre equipped, wheel‑hub assemblies overhauled
• Engine: Weichai diesel engine; full component reman, wear measurement, power output recalibrated, fault codes cleared
• Axles: 1 steer axle +2 heavy‑duty rear drive axles; disassembly inspection, gear gap adjusted, differential‑lock function verified
• Transmission: 12‑speed manual gearbox; gear‑clearance measured, failed synchronizer parts replaced, shifting performance tuned
• Suspension: Heavy‑duty leaf‑spring suspension, spring fatigue screening, dual rear‑axle pre‑load calibrated
• Dump Cargo Bin: Steel tipper bin; worn sections overlay‑welded, deformed panels straightened, bin weld seams crack‑detected
• Hydraulic Lifting System: Front‑mounted lifting cylinder; circuit full flushing, seals & high‑pressure hoses renewed, lifting‑dumping cycle calibrated
• Air‑Brake System: Dual‑circuit air brake with ABS; full overhaul, air tightness test, loaded‑simulated braking validation

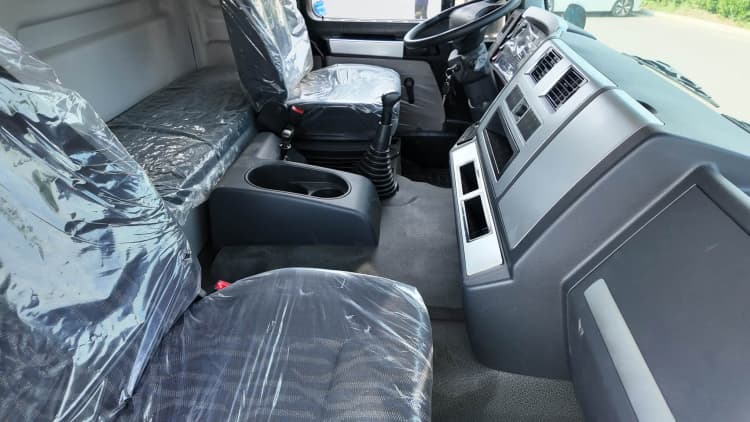

• Driver Cabin: SHACMAN F3000 engineering cab; mounting checked, wiring sorted, weather‑strip renewed
• Remanufacturing Standard: Full‑vehicle disassembly, multi‑level component screening, multi‑scene durability test, complete overhaul documentation

Truck Remanufacturing Process

• Pre‑remanufacturing technical evaluation & data recording
  Carry out complete vehicle road test and assembly performance audit. Record actual output, hydraulic lifting status and brake data. Run non‑destructive detection on frame and dump‑bin welding seams, measure wear value of axle, engine and suspension key parts, sort out repair scope according to factory wear‑limit criteria.
• Full disassembly and parts grading treatment
  Take the whole truck apart down to core component level. Classify all disassembled parts into three categories: qualified reusable after cleaning, repairable via machining/welding, and must‑replace for over‑limit wear. Severely worn bin components, aging hydraulic sealing sets and fatigued transmission parts are screened out directly.
• Component restoration, reassembly and system matching calibration
  Process repairable parts by overlay welding, straightening and precision machining. Reassemble engine, gearbox, axles following reassembly torque requirements. Reinforce dump‑bin vulnerable zones, assemble renewed hydraulic components, then conduct system‑wide matching calibration for powertrain, lifting circuit and suspension geometry.
• Multi‑dimension functional verification & file archiving
  Perform static hydraulic lifting cycle test, no‑load road test and simulated heavy‑payload dumping test. Check power output, braking performance, dumping stability and leakage status. Only units passing all measurement indicators enter final painting process. Generate VIN‑bound reman component‑inspection file for delivery.

What is the Difference Between Refurbished and Reman Trucks?

• Refurbished SHACMAN dump trucks mainly focus on exterior cosmetic improvement and breakdown‑oriented partial repair: workers clean vehicle appearance, repaint cab and cargo bin, only replace obviously broken parts while leaving internal wear of engine, axles and hydraulic assemblies uninspected. Refurbished units deliver basic drivability, yet hidden fatigue inside assemblies may trigger unexpected breakdowns on‑site, suited only for low‑intensity light‑duty temporary work.
• REMAN ROAD reman SHACMAN F3000 tipper truck executes full disassembly‑based component screening guided by wear‑limit standards. Every key assembly is measured, repaired or renewed; frame crack detection, hydraulic‑system full reconstruction and loaded functional validation are mandatory steps. Reman output targets near‑factory functional performance, bringing more stable uptime and predictable service life, better matching high‑intensity mining, quarry and large‑scale construction scenarios. The procurement cost sits far below brand‑new trucks, while reliability is greatly superior to ordinary refurbished tippers.
